Description

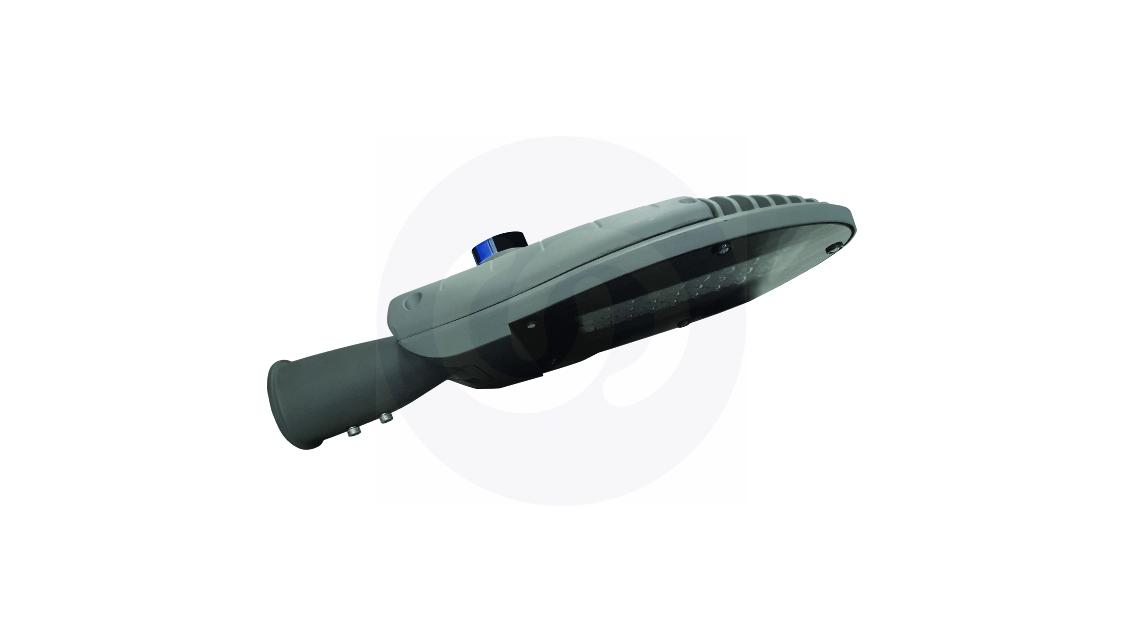

LED street light is a new model product with a high-end appearance. Long service life, environmentally friendly. Definitely a great choice of every consumer.
To ensure aesthetics, balance with the lamppost and harmonize with the surrounding landscape, it is recommended to use LED lights with the following designs and structures:

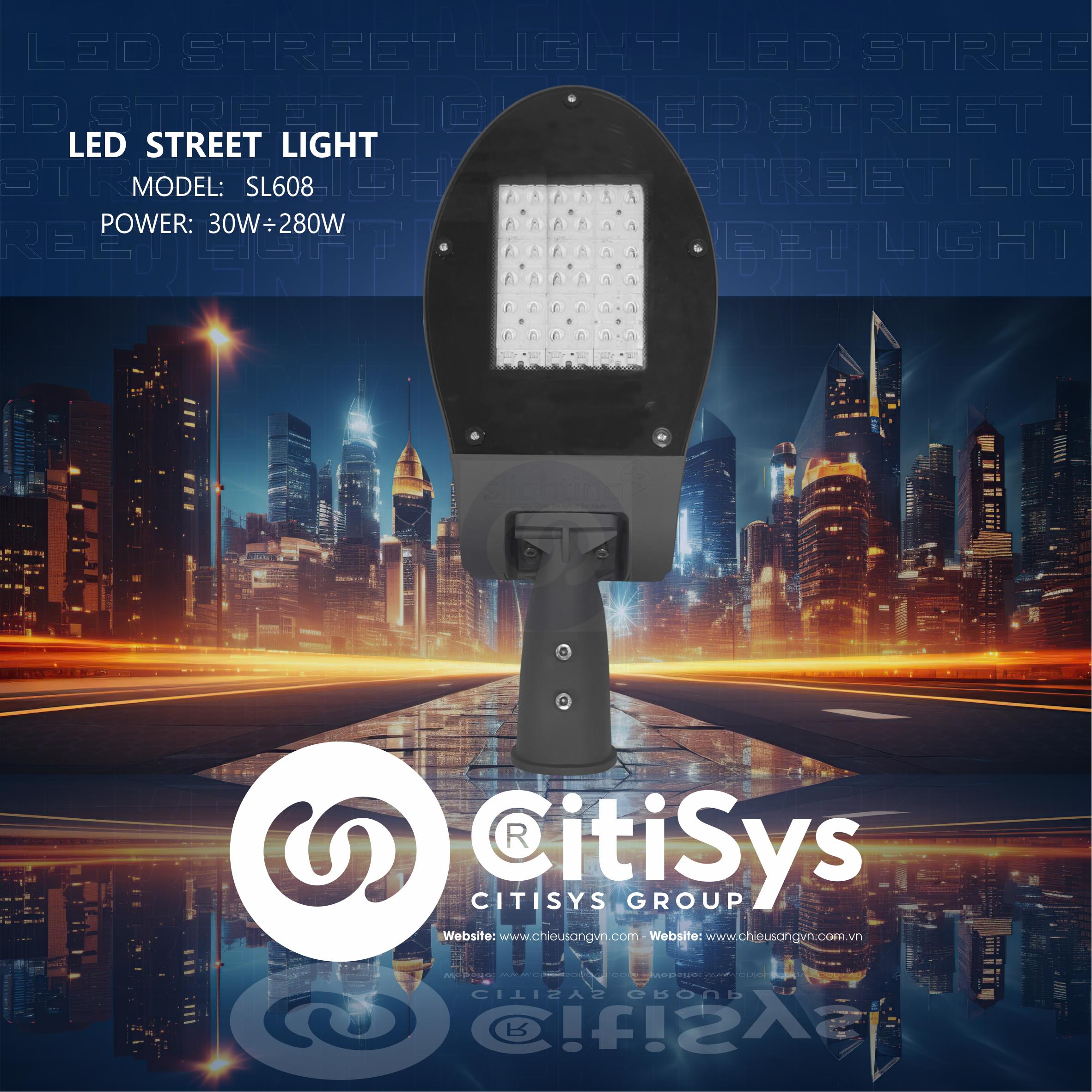

LED Street Light Specifications:
| Power | 30W ÷ 280W |
| luminous performance of luminaires | 130 lumens/W |
| Luminous flux | 3900lm ÷ 36400lm |
| Color Temperature | (3000K – 6500K) ± 3% |
| Ra Color Display Index (CRI) | > 70 – 80 |
| Input voltage | 100 – 265VAC/ 50-60Hz |
| Protection Grade | IP66-68, IK08-10, Class I |
| Luminaire lifespan | ≥ 100,000h at Ta=25°C |
| Operating ambient temperature of the lamp | -40°C to 55°C |
| Max Pulse Protection | 20kV/10kA |
Product Advantages
- Lamp components must meet IEC 61347-1:2015, IEC 61347-1:2015/AMD1:2017 standards; IEC 61347-2-13:2014;
IEC 61347-2-13:2014/AMD1:2016, EN 55015:2013/A1:2015, EN 61547:2009; EN 61000-3-2:2014, EN 61000-3-3:2013,IATF
16949:2016, ENEC, CE. - The D48/D60mm lamp head, has a mechanism to adjust the elevation of the lamp projection angle to suit a variety of roads,intersection
positions and different types of lamp levers. - High pressure die-casting aluminum monolithic lamp body, outdoor specialized polyester epoxy powder coating.
- The lamp has the manufacturer’s original embossed light logo and name.
- The lamp has IESNA LM-80-2008, IES LM82-12, IESNA TM21-11 light distribution curve data, which is integrated in
specialized design software. - The lamp has an energy stamp certificate of the Ministry of Industry and Trade and the lamp name is shown in detail in the appendix.
- Lamps with experiments of independent units are valid for no more than 06 months at Quatest 1, 2, 3 inspection centers in Vietnam.
- The optical part is made of EU specialized lenses, meeting EN 60838-1:2014+A1:2008+A2:2011
for a semi-wide projection angle of ≥ 135 degrees. - Lamps with certification of Conformity with Standards, certification of Conformity with Regulations, certified by the Directorate of Metrology and Quality 1.
- The lamp has TCVN ISO 9001:2015 certification.
- The lamp has ISO 14001:2015 environmental management system certification.
- The lamp has ISO 50001:2018 energy management system certification.
- Synthetic silicone vapor elastic lamp is heat-resistant, anti-aging, durable over time.
- The lamp uses an ultra-bright SMD 5050 LED module (High Power), on each LED module shows all the basic parameters
(DC voltage, current and allowable power), with clear barcodes, product codes, brands, and origins. - Driver power supply dimming 6 power levels and has ports/wires to upgrade to smart lights in the future.
Lighting power reduction scheme
